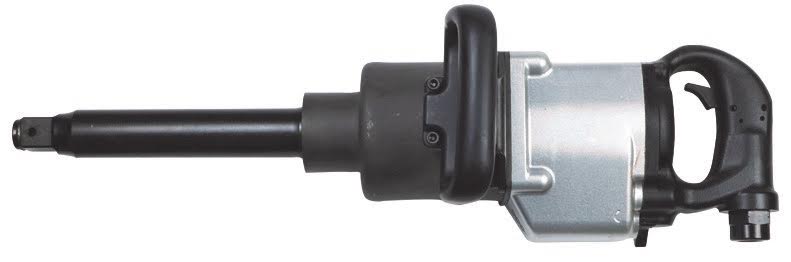

Impact wrench HW-102-8 1"
Features :
1.Side exhaust
2.Housing : Heavy duty aluminum
3.Anvil is high grade SNCM. All spare parts are made in Taiwan.
4.2" Anvil is optional.
Specification :
|
Square Drive
|
1"
|
|
Mechanism
|
Pinless
|
|
Bolt capacity
|
M40
|
|
Whole length
|
62cm / 24.4''
|
|
Avg. air consumption
|
12 cfm / 339 l/min
|
|
Air inlet
|
1/2"
|
|
Air hose(I.D.)
|
1/2"
|
|
Air pressure
|
90 psi
|
|
Torque(5 Sec.)
|
2700 ft/lbs / 3645 Nm
|
|
Torque(15 Sec.)
|
3000 ft/lbs / 4050 Nm
|
|
Net weight
|
16.7 Kgs./ 36.8 lbs.
|
|
Speed
|
4000 rpm
|

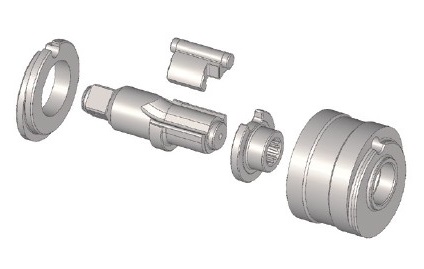

Mechanism chart : Pinless
.jpg)
Package : 1 Pc/17.3Kgs./18.3 Kgs./0.83’
