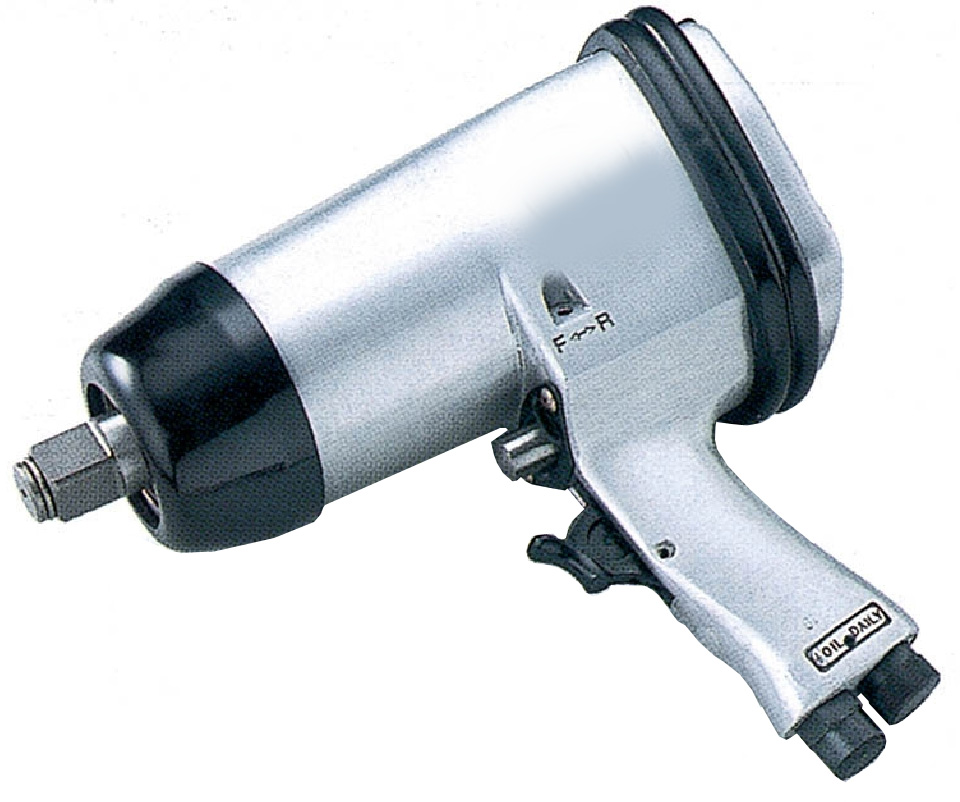

Impact wrench HW-342J 3/4"
Features :
1.Low vibration : It is good for arm long time operation.
2.Low noise : It is good for ear long time operation.
3.Pin clutch mechanism is available for soft joint and less
hurt bolts.
Specification :
|
Square drive
|
3/4"
|
|
Mechanism
|
Pin clutch
|
|
Bolt capacity
|
M25 , 1"
|
|
Whole length
|
250 mm / 9.84"
|
|
Avg. air consumption
|
14 cfm / 396 l/min
|
|
Air inlet
|
1/4"
|
|
Hose size(I.D.)
|
1/2"
|
|
Air pressure
|
90 psi
|
|
Torque (5 Sec.)
|
700 ft/lbs./ 949 Nm
|
|
Max torque(10 Sec.)
|
800 ft/lbs./ 1085 Nm
|
|
Speed
|
4800 rpm
|
|
Net weight
|
4.5 kgs./ 9.92 lbs.
|
Mechanism chart : Pin clutch
Package : 4 Pcs/18.0 Kgs./21.0 Kgs./1.3’
