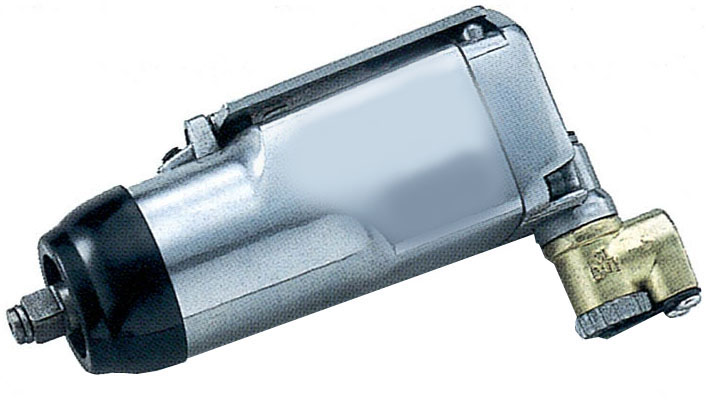

3/8" Butterfly impact wrench HW-800Y
Features :
This tool is available for small space.
Specification :
|
Square drive
|
3/8"
|
|
Mechanism
|
Rocking dog
|
|
Bolt capacity
|
M11
|
|
Whole length
|
5 3/4"
|
|
Avg. air consumption
|
11 scfm / 1.5 cfm
|
|
Air inlet
|
1/4"
|
|
Hose size (I.D.)
|
3/8"
|
|
Air pressure
|
90 psi
|
|
Air pressure
|
90 psi
|
|
Torque (5 Sec.)
|
75 ft/lbs./ 102 Nm
|
|
Max torque (10 Sec.)
|
80 ft/lbs./ 108 Nm
|
|
Speed
|
9000 rpm
|
|
Net weight
|
1.1 kgs./ 2.4 lbs.
|

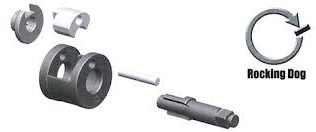

Mechanism chart :
.jpg)
Package : 20 Pcs/19.0 Kgs./20.0 Kgs./0.7’
