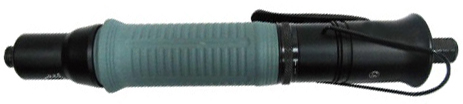

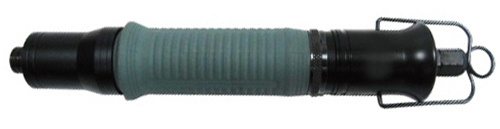

Air screwdriver (oil free auto shut -off clutch type) HAS-285M
Features :
1. High performance oil free motor for durability , reliability
& power.
2. Patented clutch design delivers reliable accuracy with
repeatable torque control ±2%.
3. Safe operation with reduced noise , vibration and low
torque reaction.
4. 20% less reaction force than last generation.
5. Economic : Super-large torque range, one can be used
for many and has obtained multiple patents which
makes the service life of the motor blade longer.
6. Beautiful Delicacy: Adhering to the humanism as the
starting point and designed by combining art,human
factors and mechanical engineering that the appearance
is professional and aesthetic.
7. Technology: Special mechanical structure and
patented special motor design have the advantages
of low noise, low vibration and high accuracy.
8. Easy operation: Friendly operation: the first software
engineer with ergonomics allows the operator to easily
complete the work of locking and screwing.
9. Comfortable : The outer handle adopts patent [Gecko
anti-skid design] and it has human-made anti-skid and
beautiful visual appearance. The outer handle can be
optimally balanced and comfortable to hold.
10. Torque fix system: It can prevent the on-site operators
from moving and adjusting the torque, and there is a
window to see the size of the torque for symbol
management.It can quickly adjust the torque or it can
not use the torque fixing ring. The latest design of both.
11. Quick Speediness: Press down the screwdriver shaft cap
to quickly change the screwdriver head.
12. Color torque management system : To provides a new
and unique torque management method,using color
marks to manage the difference of torque as a
production line torque management system.You
can use them in the production line and do effective
torque quality management as long as you choose
different colors and different torques.
Specification :
|
No
|
Torque range
kgf-cm / Nm
|
Speed
(rpm)
|
Min hose side(I.D.)
|
Air pressure
(Kg/cm²)
|
Air consumption
(L/S)
|
Noise
(±2dBA)
|
CMK
Value
|
Repeat
ability
(%)
|
|
1
|
1.0-12 / 0.1-1.2
|
1000
|
5
|
6
|
3.6
|
67
|
>1.33±10%
|
±2%
|
|
2
|
5.0-25 / 0.5-2.5
|
2200
|
5
|
6
|
3.6
|
67
|
>1.33±10%
|
±2%
|
|
3
|
5.0-30 / 0.5-3.0
|
1800
|
5
|
6
|
3.6
|
67
|
>1.33±10%
|
±2%
|
|
4
|
5.0-40 / 0.5-4.0
|
1000
|
5
|
6
|
6.5
|
67
|
>1.33±10%
|
±2%
|
|
5
|
10-50 / 1.0-5.0
|
800
|
8
|
6
|
6.5
|
67
|
>1.33±10%
|
±2%
|
|
6
|
10-80 / 1.0-8.0
|
1400
|
8
|
6
|
6.5
|
72
|
>1.33±10%
|
±2%
|
|
7
|
10-90 / 1.0-9.0
|
1000
|
8
|
6
|
6.5
|
72
|
>1.33±10%
|
±2%
|
|
8
|
30-120 / 3.0-12
|
550
|
8
|
6
|
7.5
|
72
|
>1.33±10%
|
±2%
|
|
9
|
30-200 / 3.0-20
|
300
|
8
|
6
|
7.5
|
72
|
>1.33±10%
|
±2%
|
