Hydraulic wrench HMX-1 - 35
Light weight high power wrench for socket or Allen key
Features :
1. Dual pawl mechanism - Heavy duty.
2. 360 Degree reaction Arm-Easy to working in any position.
3. One-way Ratchet - the only way to assure hands - free and multi -
tool operation.
4. Aviation material body housing - Aluminum - Titanium alloy and
high strength steel.
5. Anti-rust finish - special surface treatment.
6. Small operating radius.
7. Drop hole will protect over pressure operating.
8. Torque accuracy : ± 3 %
9. Repeatability : 100 %
Model No. :
|
Model No.
|
Square drive
|
Min. Torque
|
Max. Torque
|
Bolt size
|
Weight
|
|||
|
Lbf.ft
|
N.m
|
Lbf.ft
|
N.m
|
mm
|
Lb.
|
Kg.
|
||
|
HMX-1
|
3/4"
|
201
|
273
|
1409
|
1911
|
16-36
|
5.29
|
2.40
|
|
HMX-3
|
1"
|
475
|
645
|
3328
|
4512
|
22-48
|
11.34
|
5.15
|
|
HMX-5
|
1-1/2"
|
810
|
1099
|
5672
|
7690
|
27-56
|
19.50
|
8.86
|
|
HMX-8
|
1-1/2"
|
1136
|
1540
|
6951
|
10780
|
30-64
|
28.20
|
12.80
|
|
HMX-10
|
1-1/2"
|
1670
|
2264
|
11688
|
15847
|
36-72
|
35.90
|
16.30
|
|
HMX-20
|
2-1/2"
|
2864
|
3883
|
20049
|
27183
|
42-90
|
66.98
|
30.41
|
|
HMX-25
|
2-1/2"
|
3659
|
4961
|
25611
|
34725
|
48-100
|
85.90
|
39.00
|
|
HMX-35
|
2-1/2"
|
5376
|
7289
|
37632
|
51022
|
64-120
|
95.15
|
43.20
|
|

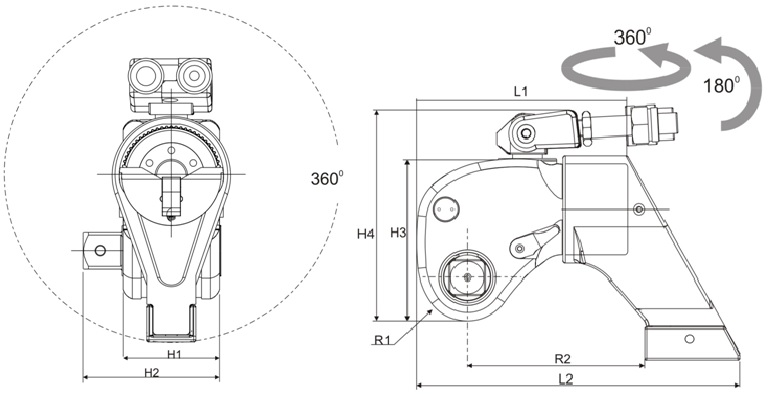

Model No.
|
Square drive
|
L1
|
L2
|
H1
|
H2
|
H3
|
H4
|
R1
|
R2
|
||||||||
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
||
|
HMX-1
|
3/4"
|
4.92
|
125
|
7.56
|
192
|
1.96
|
50.0
|
2.80
|
71.0
|
3.56
|
90.5
|
5.13
|
130.5
|
0.97
|
24.7
|
4.48
|
113.7
|
|
HMX-3
|
1"
|
6.35
|
161
|
9.58
|
243
|
2.63
|
66.8
|
3.70
|
94.0
|
4.87
|
123.7
|
6.52
|
165.7
|
1.29
|
33.0
|
5.26
|
133.7
|
|
HMX-5
|
1-1/2"
|
8.22
|
209
|
10.63
|
270
|
3.14
|
80.0
|
4.80
|
122.0
|
5.86
|
149.0
|
7.62
|
193.5
|
1.53
|
39.0
|
5.47
|
139.0
|
|
HMX-8
|
1-1/2"
|
8.74
|
222
|
11.57
|
294
|
3.54
|
90.0
|
5.11
|
130.0
|
6.57
|
167.0
|
8.61
|
218.6
|
1.85
|
47.0
|
6.02
|
153.0
|
|
HMX-10
|
1-1/2"
|
9.56
|
243
|
14.52
|
369
|
3.93
|
100.0
|
5.67
|
144.0
|
7.34
|
186.6
|
9.08
|
230.7
|
1.95
|
49.7
|
10.26
|
260.7
|
|
HMX-20
|
2-1/2"
|
12.20
|
310
|
15.24
|
387
|
4.72
|
120.0
|
7.20
|
183.0
|
8.66
|
220.0
|
10.71
|
272.0
|
2.32
|
59.0
|
7.32
|
186.0
|
|
HMX-25
|
2-1/2"
|
12.99
|
330
|
16.06
|
408
|
5.38
|
136.6
|
7.83
|
198.9
|
9.72
|
247.0
|
11.77
|
299.0
|
2.59
|
66.0
|
7.79
|
198.0
|
|
HMX-35
|
2-1/2"
|
13.89
|
353
|
21.22
|
539
|
5.81
|
147.8
|
8.62
|
218.7
|
10.90
|
276.91
|
12.35
|
313.9
|
2.98
|
75.7
|
12.68
|
322.1
|

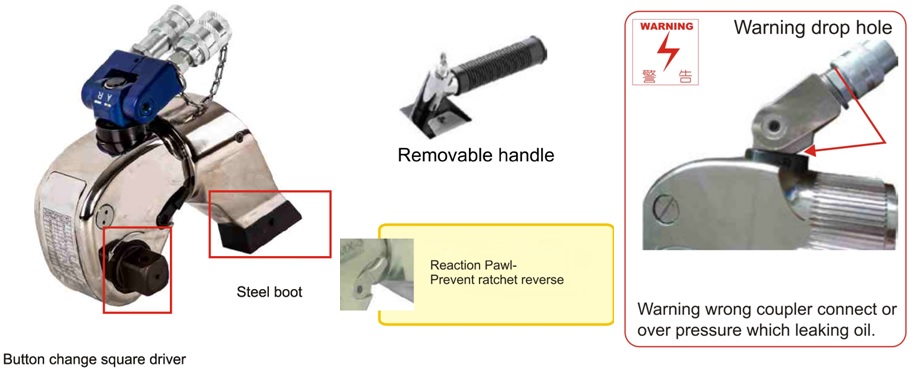

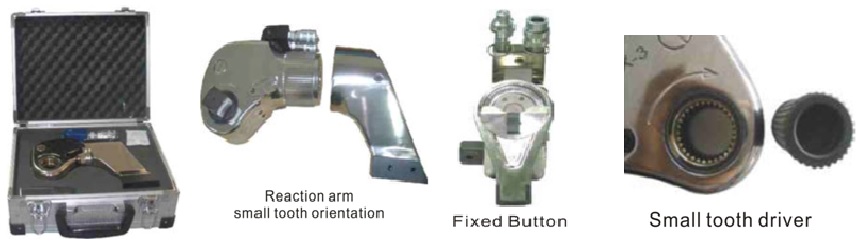

P.S. See below photos:

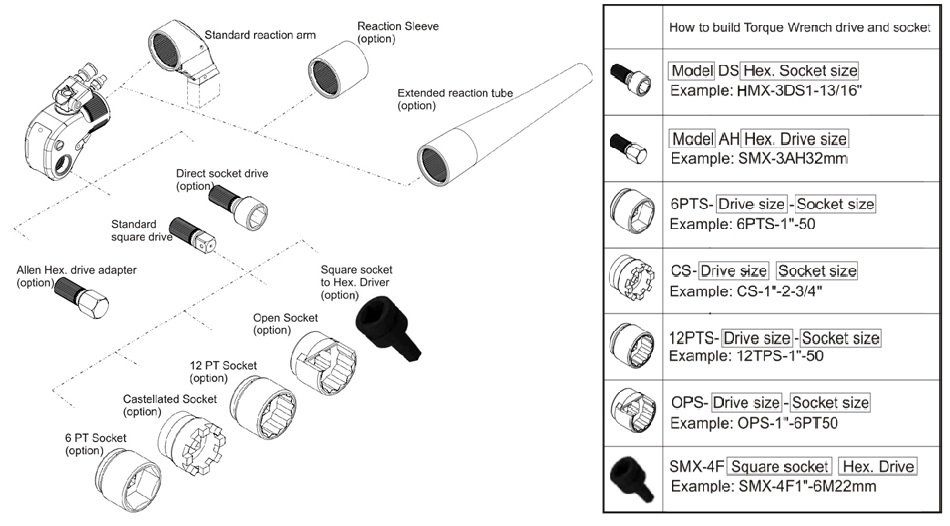

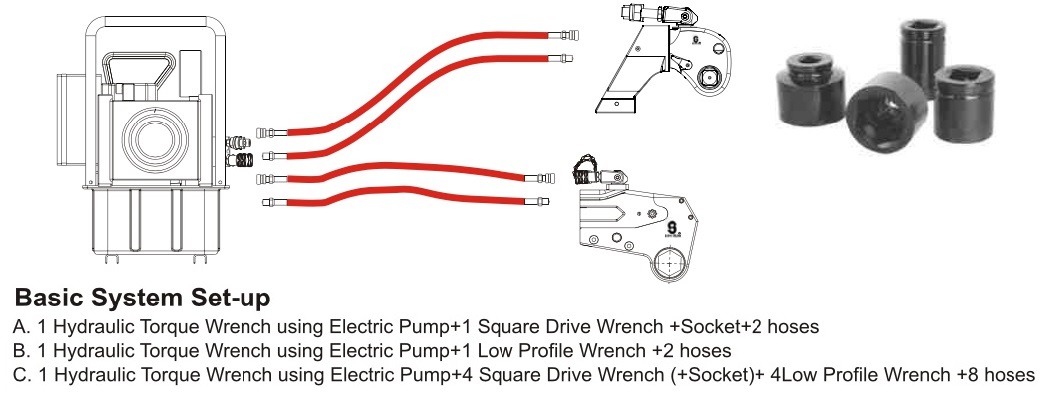

Basic system set-up :

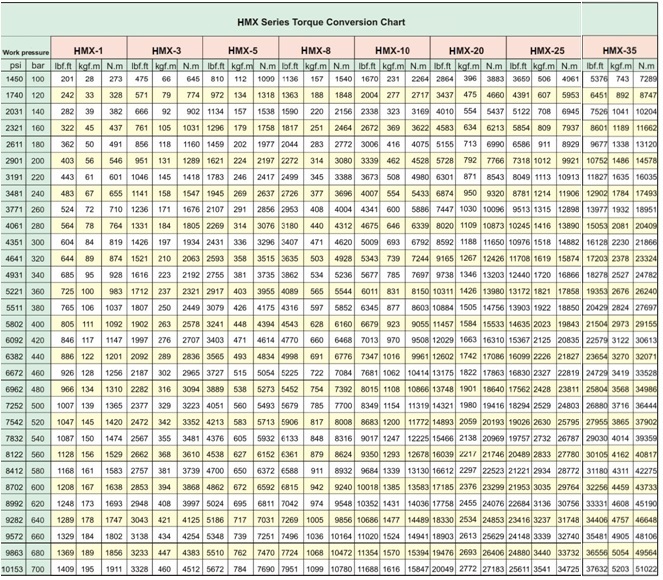

HMX Series torque conversion chart :

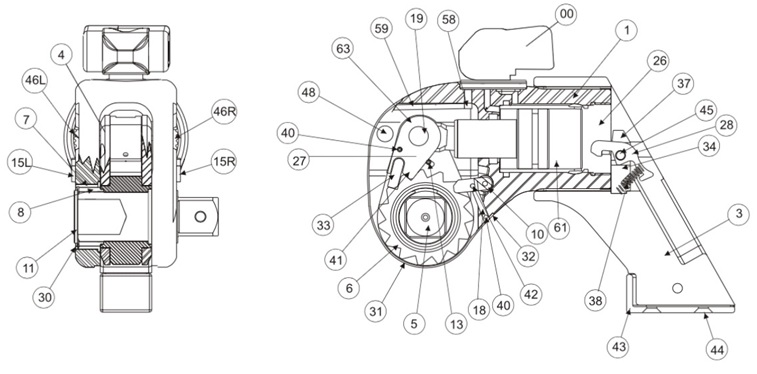

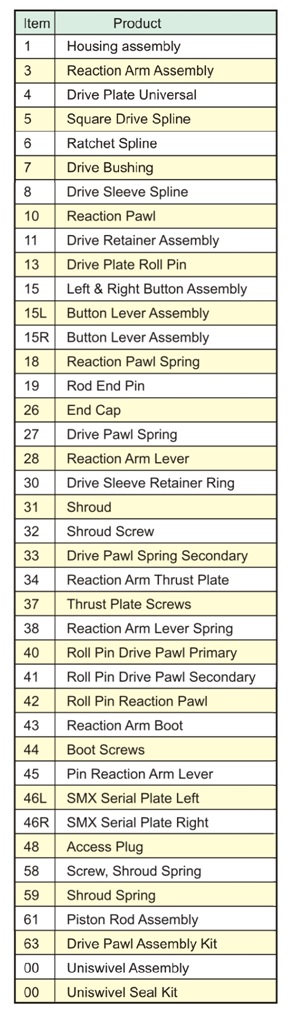

Spare part list :
